Product Name

Arduino GIGA R1 WiFi

Key Features of Arduino GIGA R1 WiFi

High-performance Dual-core MCU:
Powered by STM32H747XI with Cortex-M7 (480 MHz) and Cortex-M4 (240 MHz),
allowing real-time control and high-level processing simultaneously.
Ample Memory for Complex Projects:
• 2 MB Flash
• 1 MB SRAM
Ideal for advanced AI/ML workloads, large sketches, and data-intensive tasks.
Wireless Connectivity:
• Wi-Fi 802.11 b/g/n (2.4 GHz)
• Bluetooth® 5.1 LE
Fully compatible with Arduino IoT Cloud, AWS IoT, and other platforms.
Extensive I/O Options:
• 76 GPIO Pins
• 12 Analog Inputs (12-bit ADC)
• 13 PWM Outputs
• 4 UARTs, 3 SPI, 3 I²C
• Dual CAN Bus, USB Host/Device
Perfect for robotics, automation, and sensor-intensive projects.
Multiple Expansion Interfaces:
• Dual Camera Connector (20-pin)
• Dual USB-C Ports (Power + Data)
• MicroSD Slot for data logging
• Audio Jack and DAC Output for multimedia applications.
Flexible Power Input:
Accepts USB-C, Vin (6–24V), or external battery power,
with integrated overvoltage and reverse-polarity protection.
Programmable with Multiple Languages:
Compatible with Arduino IDE 2.0, MicroPython, and C/C++ on Arm Mbed OS,
enabling professional-grade development for embedded and IoT applications.
Ideal Use Cases:
Robotics • Edge AI • Smart Factory • IoT Gateways • Automation • STEM Education

Technical Specifications

รายการ (Item)	รายละเอียด (Specification)
Microcontroller	STM32H747XI (Cortex-M7 @480 MHz + Cortex-M4 @240 MHz)
Flash Memory	2 MB
SRAM	1 MB
Wireless	Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth 5.1 LE
GPIO Pins	76
Analog Inputs	12 (12-bit ADC)
PWM Channels	13
Communication	4× UART, 3× I²C, 3× SPI, 2× CAN, USB Host/Device
Expansion	2× Camera Connectors, MicroSD Slot, Audio Jack, DAC Output
Power Supply	USB-C / Vin (6–24V) / Li-ion Battery
Operating Temperature	-40°C to +85°C
Dimensions	101.52 × 53.3 mm (compatible with Mega/Due shields)

Description

Included in the Box

1 × Arduino GIGA R1 WiFi Board
1 × Quick Start Guide

Arduino Protenta H7 Lite Connected

ARDUINO PRO

฿ 5,800
Arduino Edge Control

ARDUINO PRO

฿ 12,000
Carbon dioxide laser tube for laserbox rotaly

XTOOL

฿ 39,800
mCreate BuildPlate

XTOOL

฿ 750
mCreate Laser

XTOOL

฿ 5,250
mCreate_Nozzle

XTOOL

฿ 1,180
mCreate Enclosure 3D printer

XTOOL

฿ 4,990
HEPA Composite Filter

XTOOL

฿ 7,500
3mm Basswood

XTOOL

฿ 5,200
3.5mm Cardboard

XTOOL

฿ 1,490
Rotary Attachment 2 Pro-General Version （ Compatible with all xTool Machine）

XTOOL

฿ 3,280
Filter Replacement Kit for xTool Smoke Purifier (1 Pack)

XTOOL

฿ 6,580
xTool Smoke Purifier

XTOOL

฿ 32,600
xTool S1 Infrared Module

XTOOL

฿ 27,800

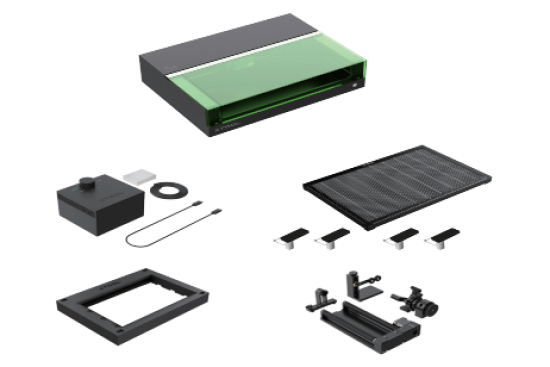

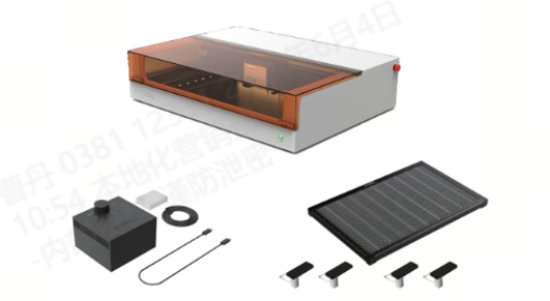

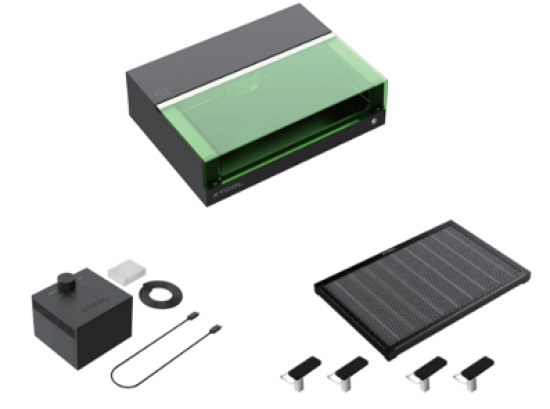

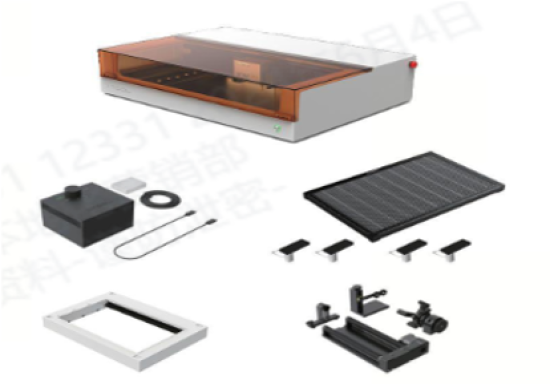

xTool S1 40W Lite Deluxe

XTOOL

฿ 128,000
xTool S1 40W Dark Deluxe

XTOOL

฿ 128,000
xTool S1 40W Lite Basic

XTOOL

฿ 114,000
xTool S1 40W Dark Basic

XTOOL

฿ 114,000

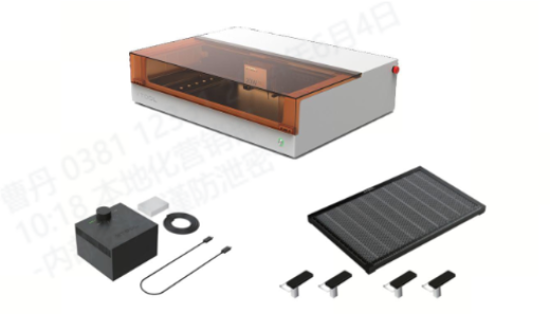

xTool S1 20W Lite Deluxe

XTOOL

฿ 83,800
xTool_S1_20W_Dark_Deluxe

XTOOL

฿ 83,800
xTool S1 20W Lite Basic

XTOOL

฿ 74,800
xTool S1 20W Dark Basic

XTOOL

฿ 74,800

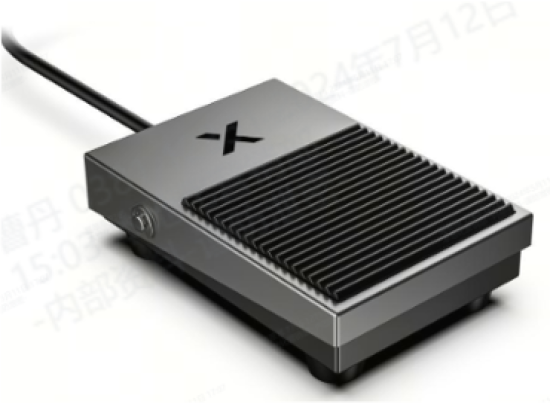

xTool F1 Pedal Switch

XTOOL

฿ 1,880

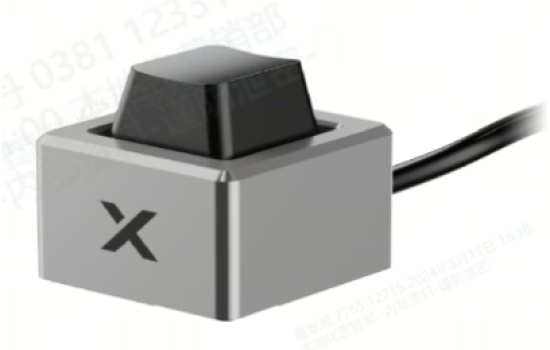

xTool F1 xTool Button Switch

XTOOL

฿ 1,880

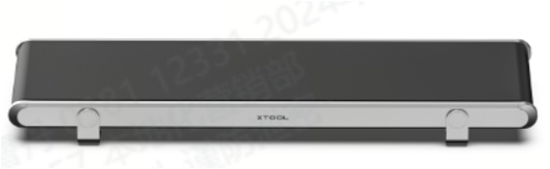

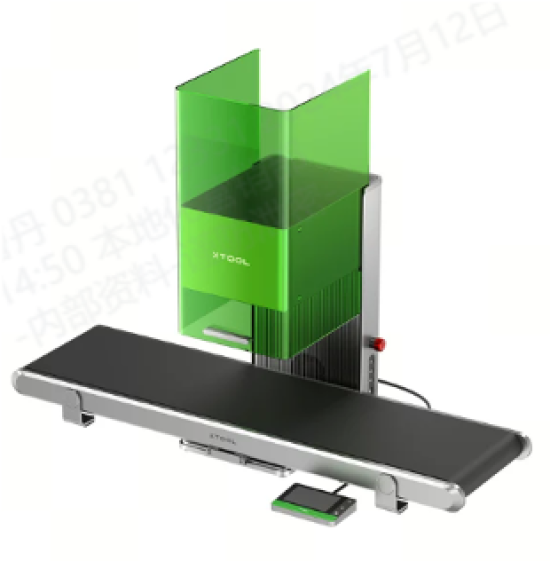

xTool F1 Ultra Conveyor

XTOOL

฿ 23,800

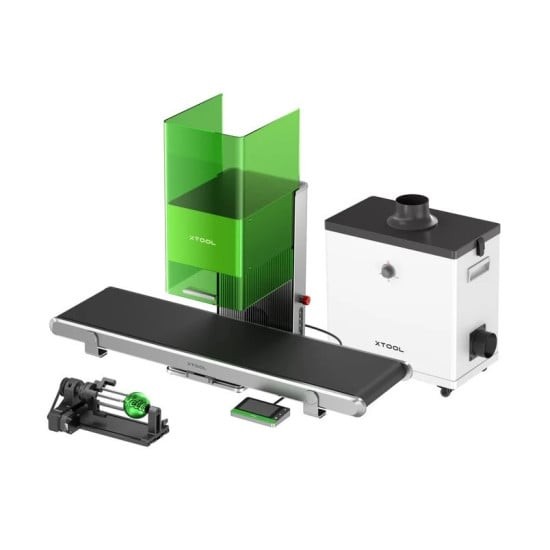

Bundle: F1 Ultra+F1 Ultra Conveyor+Smoke Purifier+ Rotary Attachment 2 Pro-F1

XTOOL

฿ 242,800

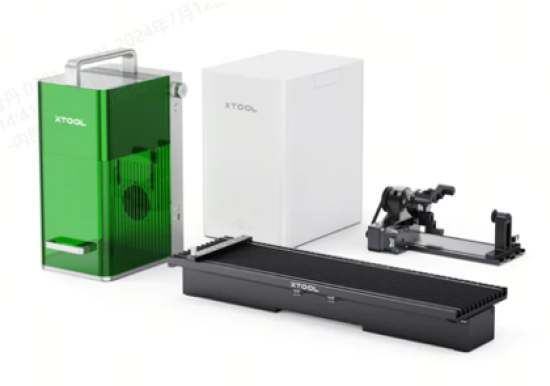

Bundle F1 Ultra + F1 Ultra Conveyor

XTOOL

฿ 205,800

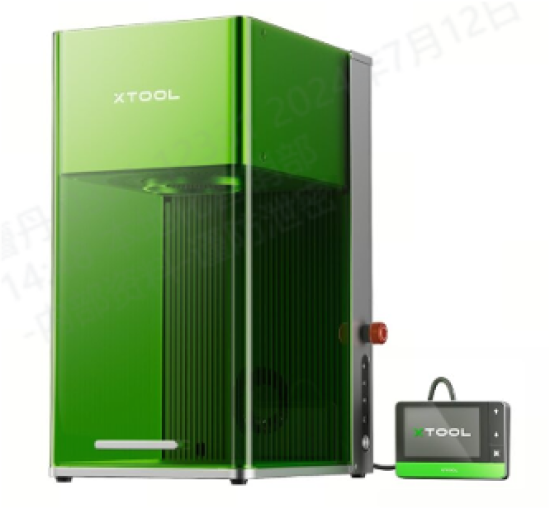

xTool F1 Ultra

XTOOL

฿ 180,000

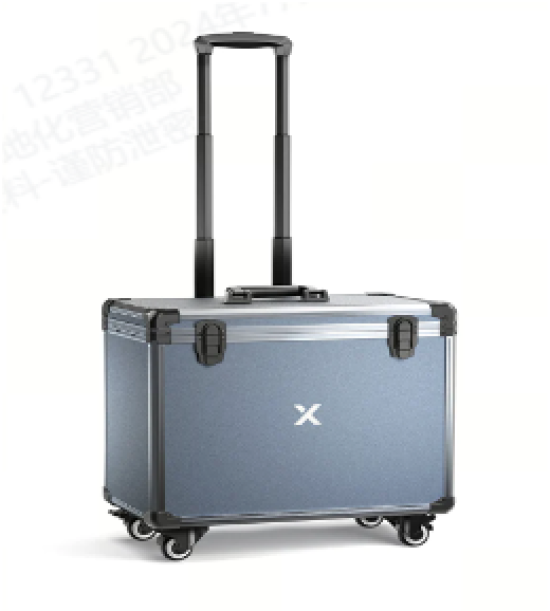

xTool F1 Rolling Hard Case

XTOOL

฿ 11,680
xTool_F1 Slide Extension_Standard Version

XTOOL

฿ 10,280

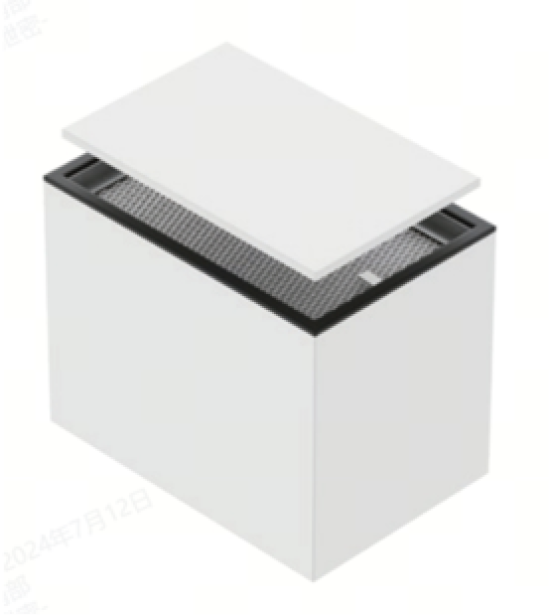

xTool Desktop Smoke Purifier Filter-1PCS

XTOOL

฿ 5,080

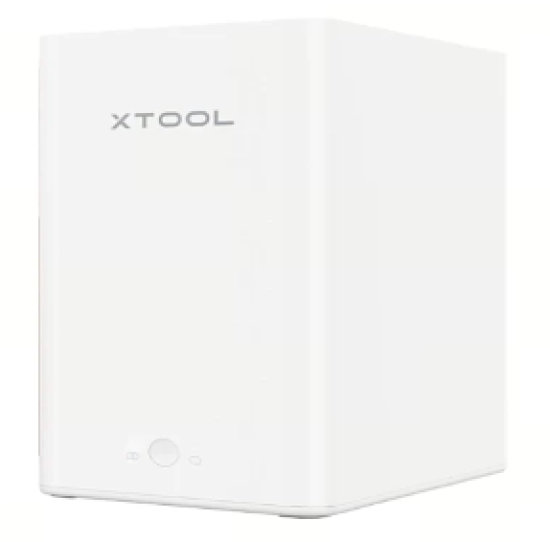

xTool Desktop Smoke Purifier

XTOOL

฿ 18,800
xTool F1 Deluxe Bundle

XTOOL

฿ 104,800

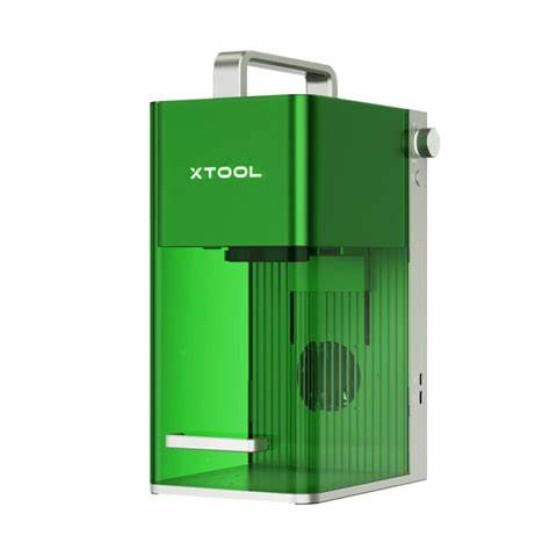

xTool F1-Mint Green

XTOOL

฿ 74,800

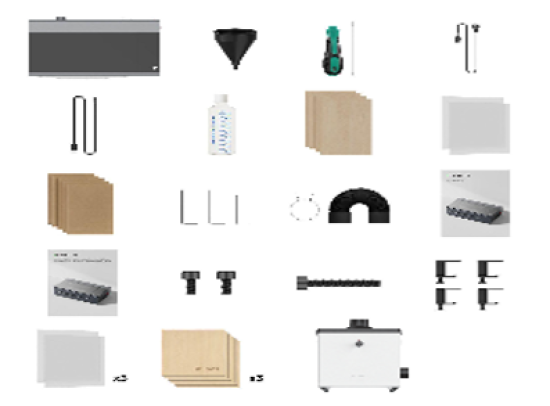

xTool P2_Edu Bundle

XTOOL

฿ 280,000

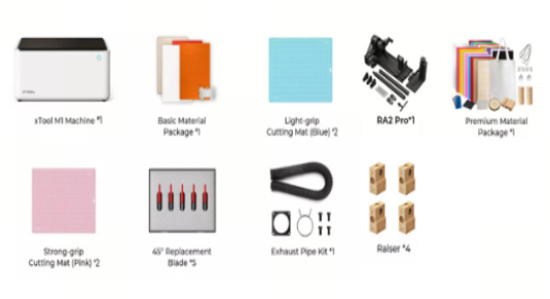

xTool M1 10W Deluxe（RA2 Pro）
